| BASIC INFO |
| Model No. |

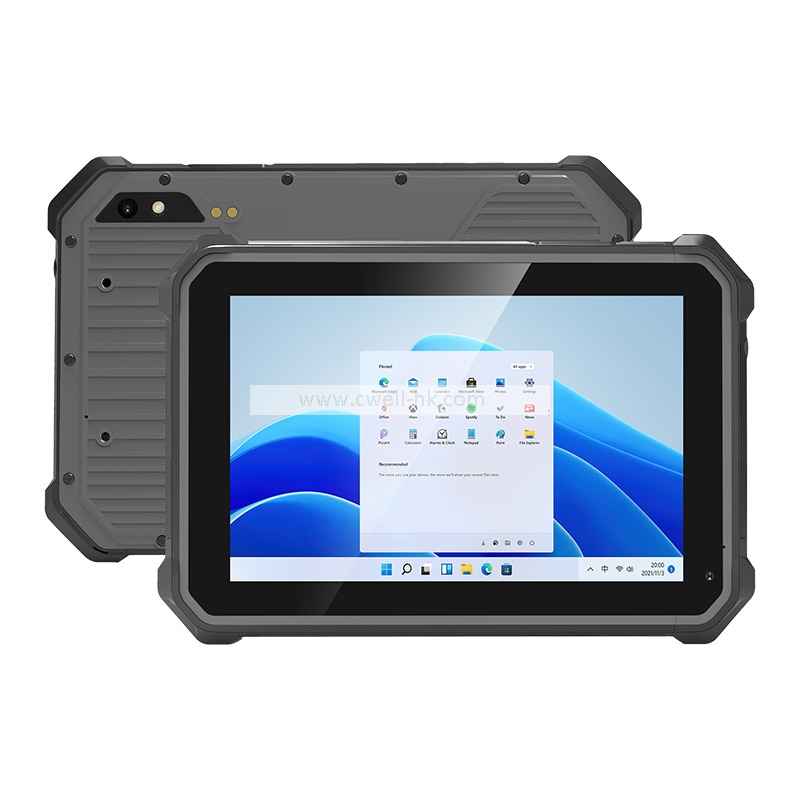

WinPad
W702 |
| Operating system |
Windows
10/11 Pro |
| Dimension |
200*135*18.5mm |
| Weight |
706g |
| Material |
ABS+PU |
| Color |
Black+Grey |
| Language |
Multi-language |
| HARDWARE |
| Screen |
7.0
inch 7H scratch-resistant G+FF IPS capacitive screen, 1280*1800px, 500nits |
| Processor |
Intel
Alder Lake N100 4C4T, 6M cache, up to 3.40 GHz; GPU: Intel UHD Graphics |
| RAM |
8GB
RAM |
| ROM |
128GB
ROM, support TF card extension up to 1TB maximally |
| Camera |
Double
cameras: 8MP front camera, 13MP rear camera with flashlight |
| Battery |
Built-in
7.6V/4700mAh lithium polymer battery |
| Sensor |
Gravity
sensor |
| Speaker |
Waterproof
8Ω/2W BOX speaker*1 |
| Buttons |
Power
Buttons, Volume+/-, custom key |
| NETWORK
& CONNECTIVITY |
| 4G/5G Network |
Optional
(4G: Quectel EM05-G; 5G: Quectel
RM500U-CNV) |
| WiFi |
IEEE
802.11a/b/g/n/ac, support 2.4G&5G dual-band WiFi |
| BT |
V5.1(BLE)
class 1，~10 meters |
| GNSS |
Support
GPS/GLONASS/Beidou |
| NFC |
Optional |
| I/O
INTERFACES |
| USB Type-A 3.0 |
*1 |
| USB Type-C |
*1 |
| HD-MI Mini 1.4 |
*1 |
| 3.5mm Audio Jack |
*1 |
| DC-IN Port |
*1 |
| TF Card
Slot |
*1 |
| Micro
SIM Slot |
Optional |
| Aviation Connector |
Optional |
| OPTIONAL
FUNCTIONS |
| 1D/2D Scanning |
Optional
(Newland CM60, Honeywell, Zebra etc.) |
| High-precision Positioning |
Optional |
| UHF RFID |
Optional |
| ID Card |
Optional |
| Fingerprint |
Optional |
| RELIABILITY |
| Waterproof |
IP67 |
| Drop proof |
1
Meter |
| Temperature Range |
Operating:
-20℃~60℃; Storage: -30℃~70℃ |
| Humidity |
95%
Non-condensing |
| STANDARD
ACCESSORIES |
| Power Adaptor (12V/4A) |
*1 |
| USB Cable |
*1 |
| Hand Strap |
Optional |
