| BASIC
INFORMATION |
| MODEL No. |

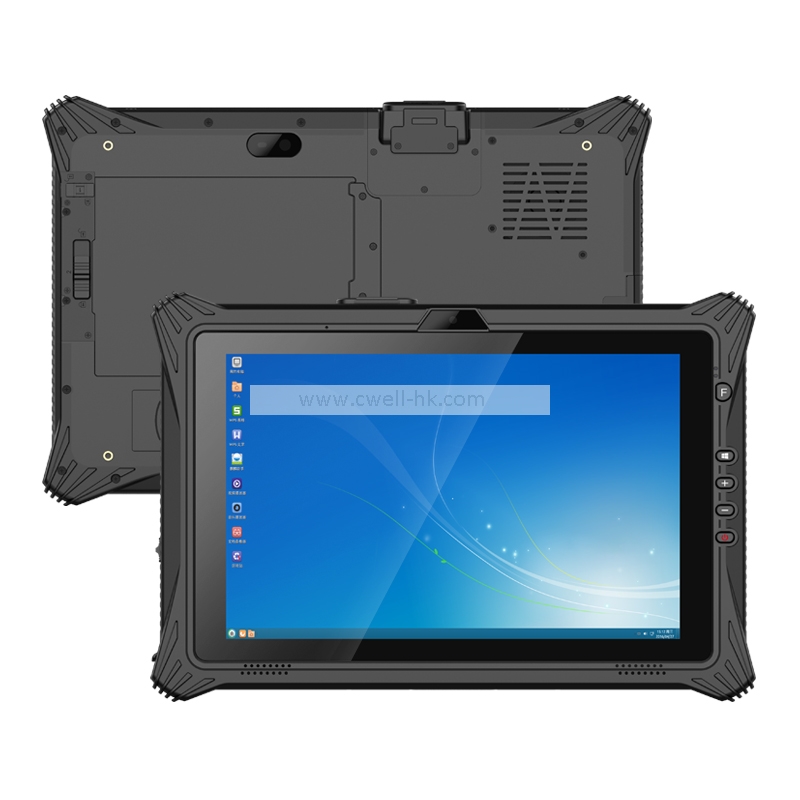

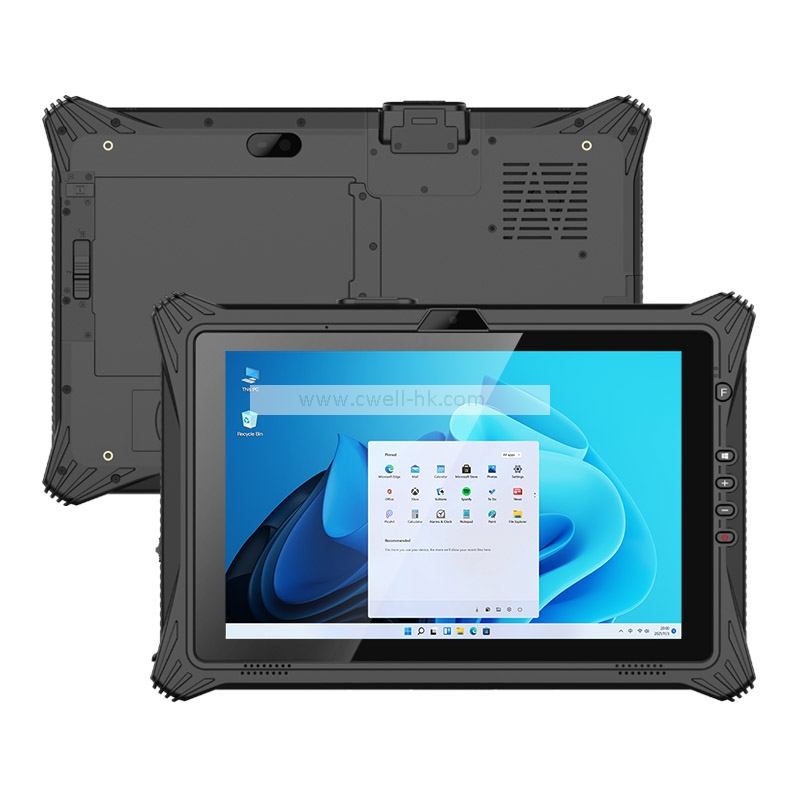

Winpad
W107 |
| Product Name |
Industrial
Windows i7 Rugged Tablet |
| Operation System |
Windows
11 Pro (IoT version optional) |
| Dimension |
289.9*196.7*27.4mm |
| Weight |
1390g
(include battery) |
| Material |
Metal+Plastic |
| Color |
Black |
| Language |
English
(other languages are optional) |
| HARDWARE |
| Screen |
10.1
inch 16: 10 7H anti-scratch capacitive touch screen, 1920*1200px, 700cd/㎡.
Support stylus |
| CPU |
Intel
Core 12th Generation i5-1235U 10C12T, 4.4GHz;
GPU: Iris Xe Graphics eligible (i7-1255U optional) |
| RAM |
16GB
RAM DDR4L |
| ROM |
Removable
128GB SSD (256GB/512GB optional), support TF card extension up to 128GB Max |
| Camera |
Front
camera: 2MP; Rear camera: 8.0MP with LED flashlight |
| Small battery |
Build
in 7.4V/700mAh Lithium-ion polymer battery |
| Big battery |
Hot
swap pluggable 7.4V/5000mAh Lithium-ion polymer battery |
| Endurance: 5hrs (default 50% volumn, default
200nit, play 1080P HD video) |
| Fingerprint Unlock |
SPI
Fingerprint *1 |
| Sensors |
Gravity
sensor |
| Fan |
IP65
fan *1 |
| Speaker |
8Ω/1W
waterproof speaker *1 |
| Keys |
Power,
Volume+/-, Windows Home, F Key
(Barcode Scanning, Customizable without barcode) |
| Indicator light |
RGB |
| TPM |
Built-in
TPM2.0 SLB9665T |
| NETWORK
& CONNECTIVITY |
| Network Bands |
2G:
GSM 900/1800MHz |
| 3G: WCDMA 850/900/2100MHz |
| 4G: FDD-LTE: B1/B3/B5/B7/B8/B20; TDD-LTE: B40 |
| WiFi |
IEEE802.11a/b/g/n/ac/ax,
support wifi 6 |
| BT |
V5.1
(BLE), ~10 meters |
| GNSS |
U-blox
M7N module, Support GPS/BDS/GLONASS/A-GPS |
| I/O
INTERFACES |
| DC-IN |
*1 |
| USB Type-A 3.0 |
*1 |
| USB Type-C |
*1 |
| 3.5mm Audio Jack |
*1 |
| HD-Mi 1.4a Mini |
*1 |
| SIM Slot |
*1 |
| TF Slot |
*1 |
| Microphone |
Waterproof
microphone 4618, - 44dB±3DB |
| Pogo PIN |
*1 |
| OPTIONAL
FUNCTIONS |
| NFC |
Optional,
NXP300 |
| 1D barcode |
Optional,
Honeywell N6551/Optical resolution:
5mil/scan speed: 50 times /s serial port |
| 2D barcode |
Optional,
Honeywell N3680/Optical resolution:5mil/scan speed:50 times /s |
| RJ45 Board |
Optional,(1000M)
network port * 1 |
| DB9 Board |
Optional |
| USB 2.0 |
Optional,
Big USB |
| RELIABILITY |
| Waterproof |
ML-STD-810H/IP65
waterproof |
| Drop-proof |
1.22m
drop test |
| Temperature Range |
Operating:
'-20 °C to 60 °C; Storage: '-30 °C to
70 °C |
| Humidity Range |
95%
Non-Condensing |
| Electrostatic Discharge |
±
8kV contact discharge, ± 15kV air discharge |
| STANDARD
ACCESSORIES |
| Charger(19V/3.42A/65W) |
*1 |
| Wrist Strap |
*1 |
| Back Jacket |
*1 |
| User Manual |
*1 |
| Dock |
Optional |
| Car Mount |
Optional |
