| BASIC INFO |
| Model No. |

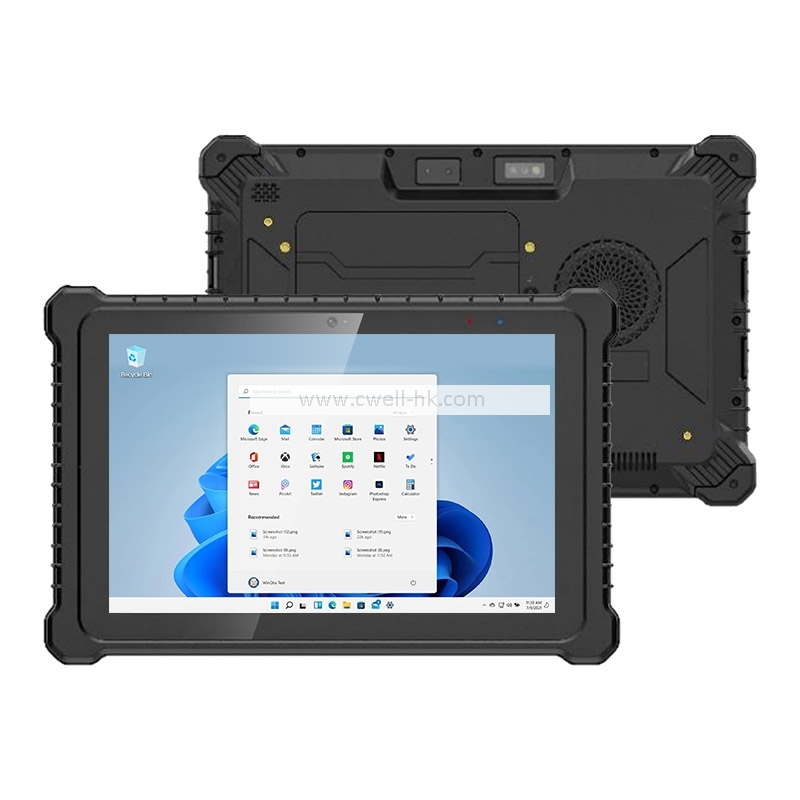

WinPad
W105 |
| Operating system |
Windows
11 Pro |
| Dimension |
284*189*32mm |
| Weight |
1350g
(include battery) |
| Material |
PC+10%GF |
| Color |
Black |
| Language |
Multi-language |
| HARDWARE |
| Screen |
10.1
inch 7H FHD IPS capacitive glove touch screen, 1920*1200px, 550cd/㎡ (700cd/㎡
optional) |
| Processor |
Intel
Core 12th Generation i5-1235U 10C12T, 4.4GHz; GPU: Iris Xe Graphics eligible (i7-1255U
optional) |
| RAM |
8GB
RAM (16GB optional) |
| ROM |
128GB
SSD (256GB/512GB/1TB optional), support TF card extension up to 1TB maximally |
| Camera |
Double
cameras: 5MP front, 8MP AF rear camera with flashlight |
| Battery |
Removable
7.6V/11200mAh lithium polymer battery |
| Sensor |
Gravity
sensor |
| Speaker |
Waterproof
speaker, 1.5W/8Ω |
| Mic |
Waterproof
microphone, sensitivity: -32±2d, output impedance: 2.2kΩ |
| Buttons |
Power
Button, Volume+/-, Custom key, F key |
| LED Indicator |
RGB |
| NETWORK
& CONNECTIVITY |
| WiFi |
IEEE
802.11 a/b/g/n/ac/ax, support wifi6 |
| BT |
V5.0(BLE) |
| I/O
INTERFACES |
| USB Type-A 3.0 |
*1 |
| USB Type-C 2.0 |
*1 |
| RJ45 Port (1000Mbps) |
*1 |
| DC-IN Port |
*1 |
| Mini HD-MI |
*1 |
| RS232 |
*1
(RS485 optional) |
| 3.5mm Audio Jack |
*1 |
| TF Card Slot |
*1 |
| Pogo Pin |
*1 |
| SIM Slot |
*1 |
| VESA Hole |
*4 |
| Safety Lock |
*1 |
| OPTIONAL
FUNCTIONS |
| 4G/5G Module |
Optional |
| GNSS |
Optional
(Beidou/Glonass/GPS module) |
| NFC |
Optional
(13.56MHz, support 14443A/14443B/15693 protocols etc.) |
| Fingerprint Unlock |
Optional |
| RFID |
Optional
(UHF module based on ISO18000-6C Protocol) |
| 1D/2D Barcode Module |
Optional |
| Aviation connector |
Optional
(USB/RS232/RS485) |
| RELIABILITY |
| Waterproof |
IP65 |
| Drop-proof |
1.2m |
| Temperature Range |
Operating:
-15℃~50℃; Storage: -20℃~60℃ |
| Humidity |
95%
non-condensing |
| STANDARD
ACCESSORIES |
| Power Adaptor (19V/3.42A) |
*1 |
| USB Cable |
*1 |
| Hand Strap |
*1 |
| Car Mount |
Optional |
| Car Charger |
Optional |
| Shoulder Strap |
Optional |
| Charging Dock |
Optional |
| DB09 Connector |
Optional |
| Capacitive
stylus |
Optional |
