| BASIC INFO |
| Model No. |

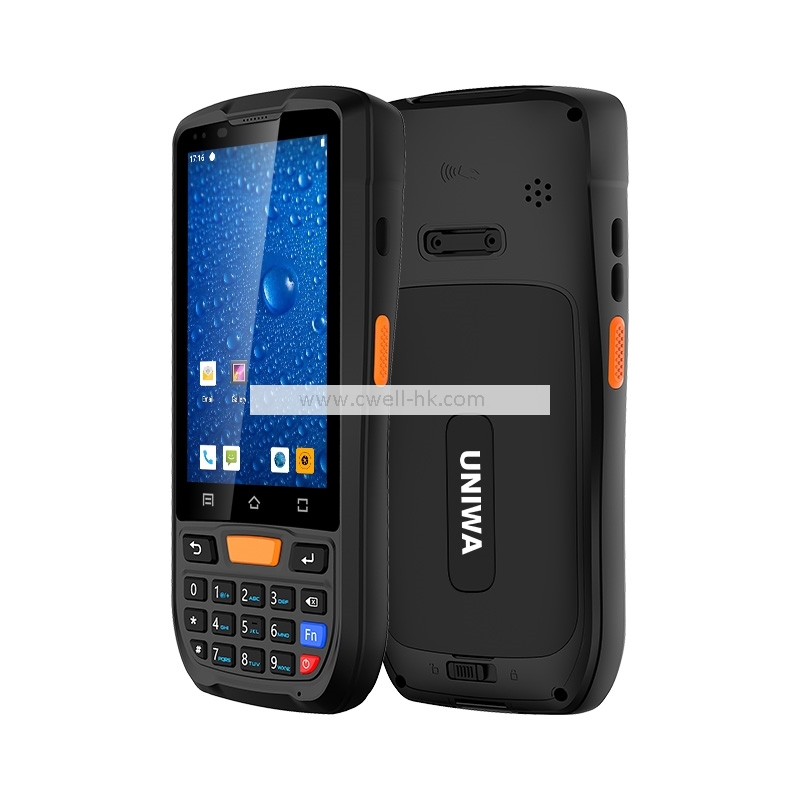

UNIWA
HS001 |
| Operating system |
Android
12 |
| Dimension |
157*73*21.6mm |
| Weight |
260g
(including battery) |
| Material |
Plastic |
| Color |
Black |
| Languages |
Multi-language |
| HARDWARE |
| Display |
4.0
inch Corning Gorilla III IPS capacitive multi-touch screen, 800*480px |
| Processor |
Mediatek
MT6762 octa core, up to 2.0GHz; GPU:
IMG GE8320, 650MHz |
| RAM |
4GB
RAM |
| ROM |
64GB
ROM, support TF card up to 128GB maximally |
| Camera |
Single
Camera: 13.0MP AF rear camera with flashlight |
| Speaker |
Built-in
8Ω/0.8W waterproof horn*1 |
| Sensor |
Gravity
sensor, gyro sensor, magnetic field sensor, proximity sensor |
| Battery |
Removable
4.35V/4300mAh Li-polymer battery |
| Buttons |
Scan
button*3, Power button, Volume+/-, T9
keyboard |
| NETWORK
& CONNECTIVITY |
| Bands |
2G:
GSM 850/900/1800/1900MHz |
| 3G: WCDMA 850/900/1900/2100MHz |
| 4G: FDD-LTE B1/B3/B5/B7/B8/B20; TDD-LTE: B38/B39/B40/B41 |
| WiFi |
IEEE
802.11 a/b/g/n/ac, support 2.4GHz/5.0GHz dual-band WiFi |
| BT |
BT5.0
(BLE) |
| GNSS |
Support
GPS/GLONASS/Beidou/Galileo |
| I/O
INTERFACES |
| SIM Slot |
*2
(1 Micro+1 PSAM) |
| TF Card slot |
*1 |
| USB Type-C port |
*1,
support OTG |
| Charging Contacts |
*2 |
| RELIABILITY |
| Waterproof |
IP66 |
| Drop-proof |
1.5
meters |
| Rolling Test |
1000 continuous 0.5m
rolls with 6 contact surfaces. |
| Electrostatic
Protection |
+/- 15kV air discharge; +/- 8kV contact
current. |
| Temperature range |
Operating: -10℃～+50℃; Storage: -40℃～+70℃ |
| Humidity range |
5%
to 95% (non-condensing) |
| OPTIONAL
FUNCTIONS |
| 2D Scanning Modules |
Optional:
UNIS N6601/Newland CM60/ Honeywell N5703/ Zebra SE4710 |
| NFC |
Optional:
13.56MHz, supports ISO/IEC 14443A protocol; reading distance: 1-3cm |
| LF RFID |
Optional:
125K/134.2K, support ISO11784/5 protocols |
| UHF RFID |
Optional:
865~925MHz, support EPC C1 GEN2/ISO18000-6C, distance: 2~5 meters |
| Temperature Module |
Optional:
Distance 1-5cm, measurement range:
32-42.9℃, accuracy 0.1℃ |
| STANDARD
ACCESSORIES |
| Power Adaptor |
*1 |
| Battery |
*1 |
| USB cable |
*1 |
| Protective Film |
*1 |
| User Manual |
*1 |
| Hand Strap |
*1 |
