| BASIC INFO |
| Model No. |

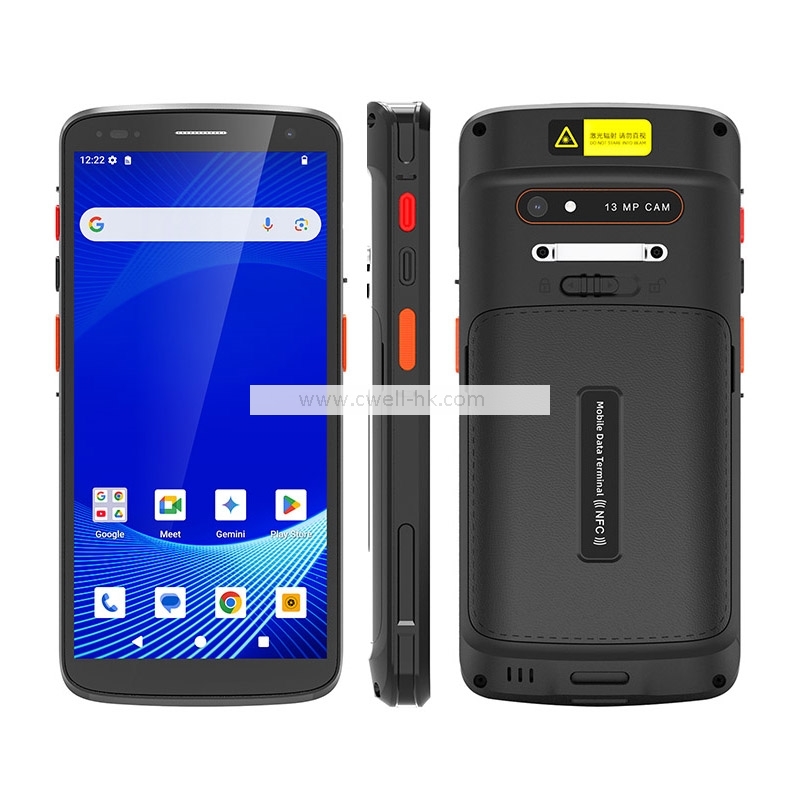

UNIWA
M602 |
| Product Name |
6
Inch Handheld Rugged PDA with 2D Scanner |
| Operating system |
Android
15 |
| Dimension |
164*77.6*16mm |
| Weight |
277g
(including battery) |
| Shell Material |
Plastic |
| Color |
Black |
| Languages |
Multi-language |
| HARDWARE |
| Screen |
6.0
inch incell FHD IPS capacitive multi-touch screen, 2160*1080px, 480dpi |
| Processor |
Mediatek
MT6765 Helio P35 octa core, up to 2.3GHz; GPU: PowerVR Rogue GE8320 |
| RAM |
4GB
RAM |
| ROM |
64GB
ROM, support TF card up to 256GB maximally |
| Camera |
Double
cameras: 5.0MP front, 13MP rear camera with flashlight |
| Speaker |
1W/1115
box speaker |
| Sensor |
Acceleration
sensor, magnetic field sensor |
| Buttons |
Scan
button*2, Power, volume+/- |
| Battery |
Removable
3.85V/5050mAh li-polymer battery |
| Indicator |
Red/blue |
| NETWORK
& CONNECTIVITY |
| Network Bands |
2G:
GSM850/900/1800/1900MHz |
| 3G: WCDMA850/1900/2100MHz |
| 4G: FDD-LTE B1/B2/B3/B4/B7/B17/B20; TDD-LTE:
B38/B39/B40/B41 |
| WiFi |
IEEE
802.11a/b/g/n/ac, support 2.4GHz/5.0GHz dual-band WiFi |
| BT |
V5.1 |
| GNSS |
Support
GPS/Beidou/GLONASS/Galileo |
| NFC |
13.56MHz |
| I/O
INTERFACES |
| SIM Slot |
*2
(Nano+Nano or Nano +TF) |
| USB Type-C Port |
*1 |
| Charging Contacts |
*2 |
| OPTIONAL
FUNCTION |
| 2D Scanning |
Optional:
Newland N1, Zebra SE4710 or Honeywell HS7 |
| RELIABILITY |
| Waterproof |
IP67 |
| Drop-proof |
1.5-meter
wooden floor |
| Temperature range |
Operating: -20℃～50℃
Storage: -20℃～70℃ |
| Humidity range |
Operating: 5％RH~95％RH |
| STANDARD
ACCESSORIES |
| Power Adaptor |
*1 |
| Battery |
*1 |
| USB Cable |
*1 |
| User Manual |
*1 |
| Hand Strap |
*1 |
| Charging dock |
Optional |
