| BASIC INFO |
| Model No. |

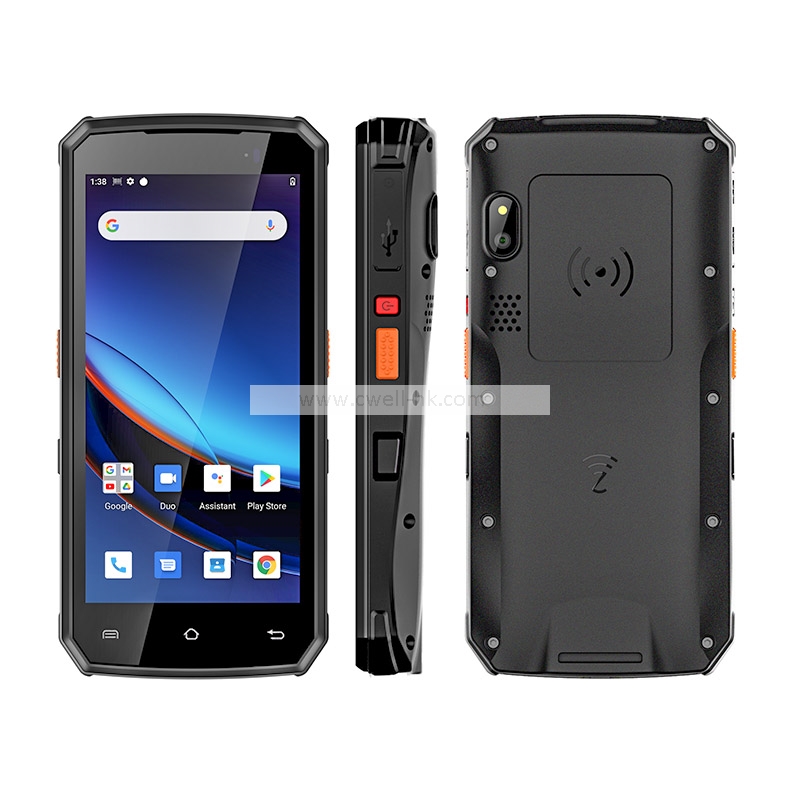

UNIWA
M580S |
| Operating system |
Android
10 |
| Dimension |
165*78*23mm |
| Weight |
290g
(include battery) |
| Material |
Metal+plastic |
| Color |
Black |
| Languages |
Multi-languages |
| HARDWARE |
| Display |
5.5
inch HD+ IPS capacitive touch screen, 1440*720px |
| Processor |
Mediatek
MT6761 quad core, up to 2.0GHz; GPU:
PowerVR Rogue GE8300 |
| RAM |
4GB
RAM |
| ROM |
64GB
ROM, support TF card up to 128GB maximally |
| Camera |
Single
camera: 8.0MP back camera with flashlight ( 5.0MP/8/0MP front camera
optional) |
| Battery |
Removable
3.7V/3900mAh li-polymer battery |
| Sensors |
Acceleration
sensor, light sensor, proximity sensor, E-compass |
| Speaker |
1511
box loudspeaker |
| Keys |
Power
button, volume +/-, scan button*2, custom button*1 |
| NETWORK
& CONNECTIVITY |
| Network Bands |
2G:
GSM 850/900/1800/1900MHz |
| 3G: WCDMA 850/900/1900/2100MHz |
| 4G: FDD-LTE B1/B2/B3/B4/B5/B7/B8/B12/B13/B20;
TDD-LTE B34/B38/B39/B40/B41 |
| WiFi |
IEEE
802 a/b/g/n/ac, support 2.4GHz/5GHz dual-band WiFi |
| BT |
V4.0 |
| GNSS |
Support
GPS/A-GPS/Galileo/Glonass/Beidou |
| I/O
INTERFACES |
| SIM Slots |
*2 (Nano+Nano or
Nano+TF) |
| USB Type-C port |
*1, Support OTG |
| Charging Contacts |
*2 |
| OPTIONAL
FUNCTIONS |
| NFC |
Optional:
NXP NQ310 chipset |
| Scanning Module |
Optional:
Honeywell N5703, Zebra SE4100/SE5500, Huasheng TL10 |
| Backup Battery |
Optional:
500mAh backup battery for hot swap |
| P-SAM |
Optional |
| RFID Module |
Optional:
Operating frequency 840-960MHz, Reading distance > 1.5 meters |
| LF RFID Module |
Optional:
125/134.2KHz FDX-B and HDX according to lSO/EC11784/5 |
| RELIABILITY |
| Waterproof |
IP55
Waterproof |
| Drop-proof |
1.5
meters |
| Rolling test |
6
sides can run stably after 1000 times rolling continuously for 0.5m |
| Temperature Range |
Operating: -20℃~60℃; Storage: -40℃~70℃ |
| Humidity range |
5%RH~95%RH,
Non-Condensing |
| ACCESSORIES |
| Power Adaptor |
*1 |
| USB Cable |
*1 |
| Battery |
*1 |
| Landyard |
*1 |
| User Manual |
*1 |
| Scan handle |
Optional |
| Charging Dock |
Optional |
