| BASIC INFO |
| Model No. |

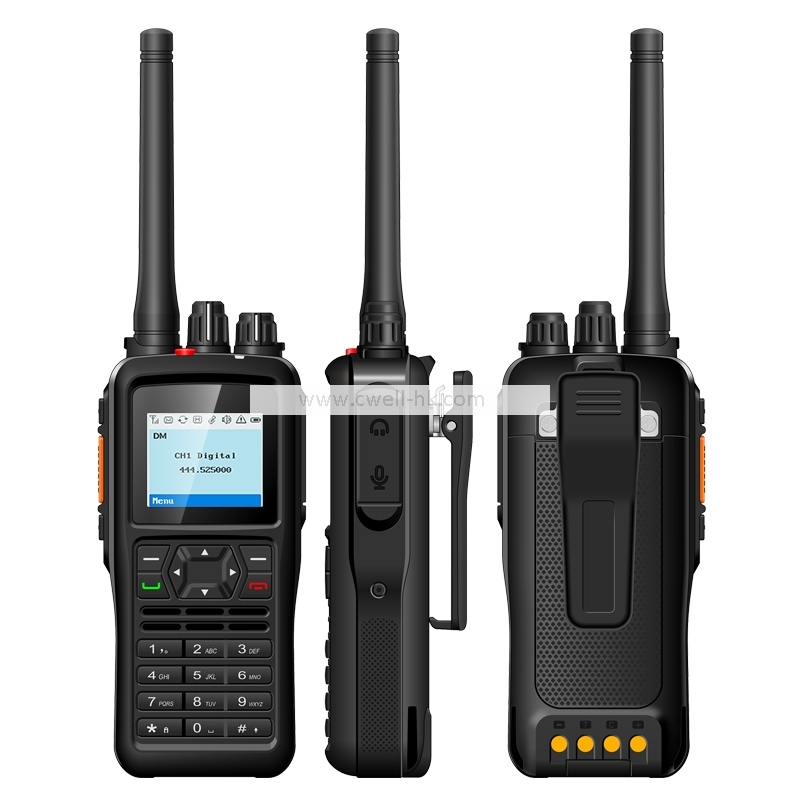

UNIWA DW001
|
| Frequency |
400-440MHz,
430-470MHz |
| Power |
Low:1W,
High: 4W |
| Channel Spacing |
12.5kHz
(Supported 25kHz, Canada only) |
| Channel Capacity |
32*32
channels |
| Contact Capacity |
1000 |
| Dimension |
132.5*65*34mm(without
antenna), 233*65*34mm (with antenna) |
| Net weight |
330g |
| Languages |
English,
Chinese |
| HARDWARE |
| Display |
1.77''
LCD colour display |
| Battery |
2000mAh
Li-Ion battery, operating voltage: 7.4V |
| Keypad |
Backlit
full Numeric keypad |
| Volume
Knob |
Yes |
| Channel
Knob |
Yes,
stepless |
| Rotary
Knob |
Volume
setting |
| Antenna |
Detachable,
SMA connector |
| Emergency
Button |
Yes |
| Programmable
Buttons |
2,
side buttons |
| Tx, Rx,
Battery Status Indicator |
Yes,
Refer CMF Tab |
| Audio
jack |
2.5mm+3.5mm |
| TRANSMITTER |
| Digital Protocol |
DMR |
| Modulation Limit 12.5KHz |
±2.5kHz |
| Conducted/Radiated emission |
-36dBm<1GHz,
-30dBM>1GHz |
| Adjacent Channel Power |
±12.5kHz
≤-60dB |
| Frequency Error |
±0.5ppm |
| RECEIVER |
| Analog Sensitivity |
-121dBm |
| Digital Sensitivity |
-121dBm |
| Intermodulation Dig |
60dB |
| Intermodulation Ana |
60dB |
| Adjacent Channel Selectivity |
60
dB(12.5KHz) |
| Spurious Response |
≥63dB |
| PL CSQ Hum & Noise @12.5kHz |
>35dB |
| DPL CSQ Hum & Noise @12.5kHz |
>35dB |
| Radiated Emission (<1 GHz) |
<-57dBm |
| Radiated Emission (>1 GHz) |
<-47dBm |
| AUDIO |
| Vocoder |
AMBE2+ |
| Audio Response |
+1 ~ -3dB |
| Audio Power |
1W |
| Audio Distortion |
5% |
| Hum & Noise |
-40
dB(12.5KHz),-45dB (25.0KHz) |
| Loudness |
95Phon |
| FUNCTIONS |
| Analog Direct mode |
Squelch
Level, 0~9, CTCSS 38, CDCSS 83, DTMF, Squelch Tail Elimination, Channel
Monitor, PTT ID, Call Alert, Commander, Scramble, Emergency Call |
| Digital
Direct mode |
Voice,
Text Message, Radio Check, Call Record, Call Alert, Individual Call,Group
Call, All Call, Call ID, Emergency Call, Remote Monitor, End-to-End
Encryption |
| DMR
Repeat mode |
Voice,
Radio Check(only respone), Call Alert, Individual Call, Group Call, All
Call,Emergency Call, End-to-End Encryption |
| Voice
Announcement |
Yes,
English & Chinese, Default：English |
| VOX |
Yes,
OFF, 1, 2, 3. Default OFF |
| CPS |
Yes,
through audio jack |
| CPS Clone |
Yes |
| CPS Password Protection |
Yes |
| Color Code Privacy |
Yes,
16 only |
| Noise Cancellation |
Yes |
| NTC Protection |
Yes |
| Scanning function |
Yes |
| Tri-band Equalizer |
Yes |
| Tx Time Out Timer |
Yes |
| Basic Privacy |
Yes |
| Factory Reset |
Yes |
| Kill/Stun |
Yes |
| Revive |
Yes |
| RELIABILITY |
| Waterproof |
IP65 |
| Electrostatic Discharge, IEC 61000-4-2 LV4 |
15kV(Air)，8kV(Contact) |
| Packaging Test |
MIL-STD
810D & E |
| Mil Standard |
810
C, 810 D, 810 E, 810 F , 810 G |
| Temperature range |
Operating: -25 ~ +55 Storage: -40 ~ +85 |
| Certificates |
FCC
Certificate, CE Certificate |
| ACCESSORIES |
| Digital
radio |
x1 |
| Adapter |
x1 |
| Seat Charger |
x1 |
| Belt Clips |
x1 |
| Antenna |
x1 |
| 2000mah lithium battery |
x1 |
| User's Manual |
x1 |
