WinPad W89-Windows Tablet PC-Tablet PC/TV Box

WinPad W89

  • WinPad W89
  • WinPad W89
  • WinPad W89
  • WinPad W89
  • WinPad W89
  • Product Scores:
  • Model No.:WinPad W89
  • Standard Price:$ 327.2~$ 349.8/piece (Notice: the detailed price based on order quantity)

Price down noticeclose ×

share:

Features & Specification

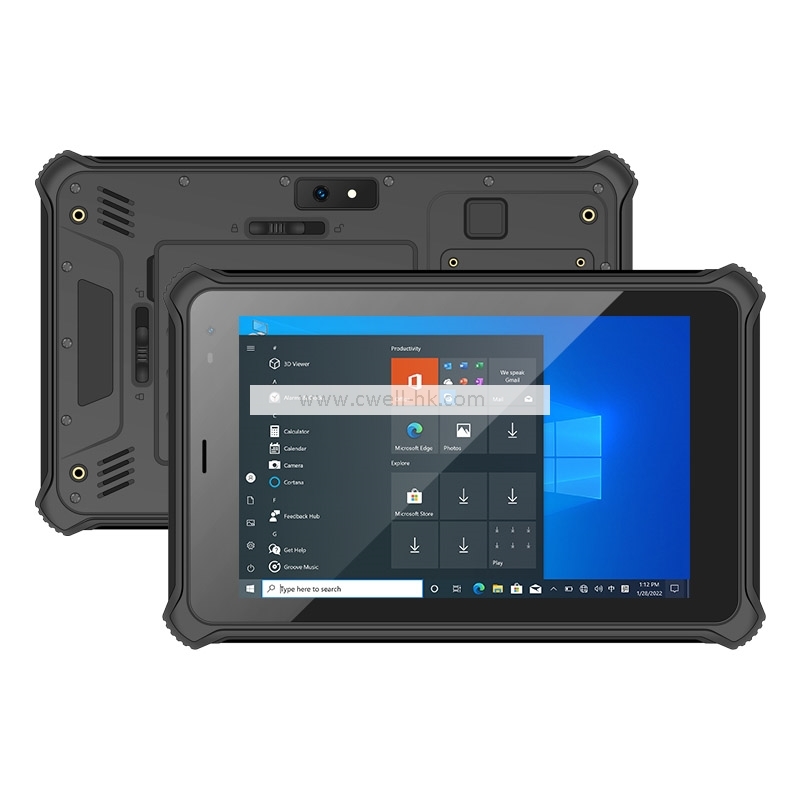

WinPad W89 RJ45 4G LTE IP67 Waterproof 8 Inch GNSS Rugged Tablet Windows 10
1) 1000 Nits Sunglight Screen Optional
2) Windows 10 Operation System
3) RJ45/USB Type-A Ports
4) uBlox M7N GNSS Module
5) IP67 Waterproof
6) Removable 8500mAh Battery
7) Intel Z8350 Quad Core Processor
8) Support 4G LTE
9) 1D/2D/RFID/NFC/Fingerprint/RS232/CAN BUS Ports Optional

BASIC INFO
Model No. WinPad W89
Operating system Windows 10 home, (Win 10 pro, Win 10 IOT optional)
Dimension 227*142.4*22.9mm
Weight 1080g
Material PC+TPU
Color Black (can be customized)
Language Multi-language
HARDWARE
Display 8 inch Corning Gorilla III IPS capacitive touch screen, 1280*800px, 450cd/㎡
Processor Intel Cherry Trail Z8350 quad core, 1.44GHz ~ 1.92GHz;  Intel HD Graphics Gen8
RAM 4GB RAM
ROM 64GB ROM (32GB/128GB ROM optional), support TF card up to 256GB maximally
Camera Rear camera: 5MP;  Front camera: 2MP
Battery Removable 3.8V/8500mAh Li-ion battery
Sensor Gravity sensor
Speaker *2, 1.2W/8Ω
Receiver *1
Mic *2
Keys Power key, Volume+/-, P-Key, F-Key
Indicator light *1
NETWORK & CONNECTIVITY
Bands 2G: GSM B3/B8
3G: WCDMA B1/B5/B8
4G: FDD-LTE B1/B3/B5/B7/B8/B20, TDD-LTE B38/B40/B41
WiFi IEEE 802.11a/b/g/n/ac, support 2.4G/5.8G dual-band WiFi
BT V4.0(BLE), ~10 meter
GNSS Built-in U-blox M7N module, support GPS/BDS
I/O INTERFACES
Micro SIM Slot *1
TF Card slot *1
USB Type-C 2.0 *1, Support OTG
USB Type-A 2.0 *1
RJ45 Ethernet Port *1, 100Mbps
DC-IN *1
Mini HD-MI *1
3.5mm Audio Jack *1
CONINVERS RS232/USB/DC5V/CAN BUS optional
Pogo Pin *1
OPTIONAL FUNCTIONS
NFC 13.56MHz, Support: 14443A/14443B/15693
UHF RFID PR9200, Read distance: 1.5m-3m; Read distance 2: 5m-8m
ID Card Reader Support reading 2th Generation ID card
Fingerprint 1: ordinary industrial fingerprint
2: Fingerprint authentication by the Ministry of Public Security
3: FBI certified fingerprint
1D barcode scanner Zebra SE655
2D barcode scanner Zebra SE2707
Screen 800cd/㎡(1920*1200px),1000cd/㎡(1280*800px),Wet hand touch, Glove touch, Active/passive capacitor pen, AG+AF Coating, AR Coating
RELIABILITY
Waterproof IP67
Drop-proof 1.2M,Cement floor
Temperature range Operating: -20℃~60℃       Storage: -30℃~70℃
ACCESSORIES
Charger(5V/3A) *1
User Manual *1
Hand strap Optional
Mounted bracket Optional
Standby Battery Optional
Docking Optional
Type-C Cable Optional
OTG Cable Optional
