| BASIC INFO |
| Model No. |

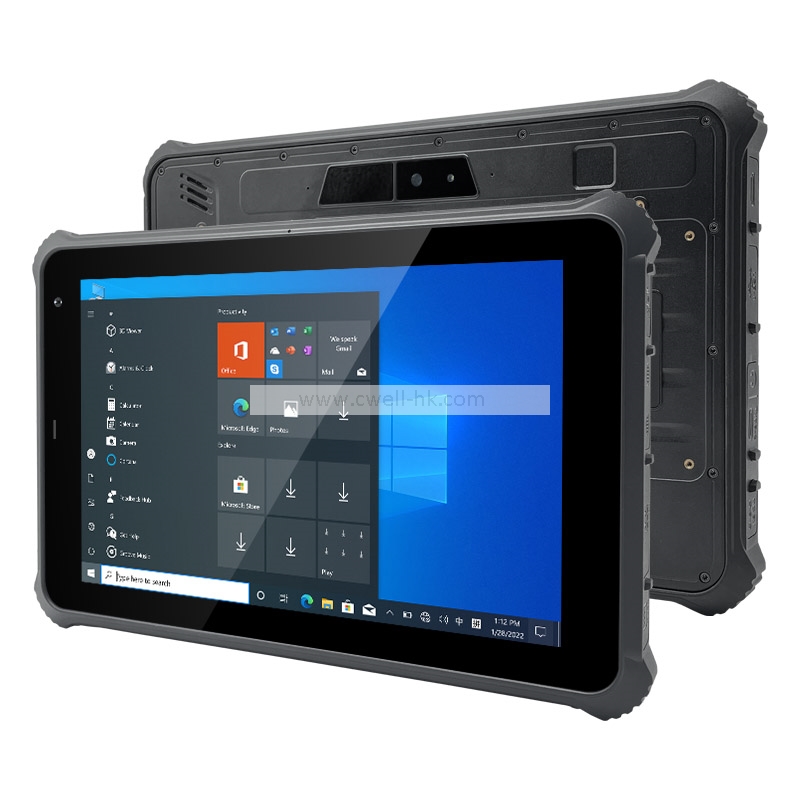

WinPad
W109 |
| Operating system |
Windows
10 home (Win 10 pro, Win 10 IOT optional) |
| Dimension |
277.48*182.74*21.5mm |
| Weight |
1155g |
| Material |
PC+TPU |
| Color |
Black
(can be customized) |
| Language |
Multi-language |
| HARDWARE |
| Display |
10.1
inch Corning Gorilla III IPS capacitive touch screen, 1280*800px, 450cd/㎡ |
| Processor |
Intel
Cherry Trail Z8350 quad core, 1.44GHz ~ 1.92GHz; GPU: Intel HD Graphics Gen8 |
| RAM |
4GB
RAM |
| ROM |
64GB
ROM (32GB/128GB ROM optional), support TF card up to 256GB maximally |
| Camera |
Rear
camera: 5MP; Front camera: 2MP |
| Battery |
Removable
3.8V/8500mAh Li-ion battery |
| Sensor |
Gravity
sensor |
| Speaker |
*2,
1.2W/8Ω |
| Receiver |
*1 |
| Mic |
*2 |
| Keys |
Power
key, Volume+/-, P-Key, F-Key |
| Indicator light |
*1 |
| NETWORK & CONNECTIVITY |
| Bands |
2G:
GSM 900/1800MHz |
| 3G: WCDMA 850/900/2100MHz |
| 4G: FDD-LTE B1/B3/B5/B7/B8/B20, TDD-LTE
B38/B40/B41 |
| WiFi |
IEEE
802.11a/b/g/n/ac, support 2.4G/5.8G dual-band WiFi |
| BT |
V4.0(BLE),
~10 meter |
| GNSS |
Built-in
U-blox M7N module, support GPS/BDS |
| I/O INTERFACES |
| Micro SIM Slot |
*1 |
| TF Card slot |
*1 |
| USB Type-C 2.0 |
*1,
Support OTG |
| USB Type-A 2.0 |
*1 |
| RJ45 Ethernet Port |
*1,
100Mbps |
| RS232 |
*1 |
| DC-IN |
*1 |
| Mini HD-MI |
*1 |
| 3.5mm Audio Jack |
*1 |
| Pogo Pin |
*1 |
| CONINVERS |
RS232/USB/DC5V/CAN
BUS optional |
| OPTIONAL FUNCTIONS |
| NFC |
13.56MHz,
Support: 14443A/14443B/15693 |
| UHF RFID |
PR9200,
Read distance: 1.5m-3m; Read distance 2: 5m-8m |
| ID Card Reader |
Support
reading 2th Generation ID card |
| Fingerprint |
1:
Ordinary industrial fingerprint
2: Fingerprint authentication by the Ministry of Public Security
3: FBI certified fingerprint |
| 1D barcode scanner |
Zebra
SE655 |
| 2D barcode scanner |
Zebra
SE2707 |
| Screen |
800cd/㎡(1920*1200px),1000cd/㎡(1280*800px),Wet
hand touch, Glove touch, Active/passive capacitor pen, AG+AF Coating, AR
Coating |
| RELIABILITY |
| Waterproof |
IP67 |
| Drop-proof |
1.2M,Cement
floor |
| Temperature range |
Operating:
-20℃~60℃ Storage: -30℃~70℃ |
| ACCESSORIES |
| Charger(5V/3A) |
*1 |
| User Manual |
*1 |
| Hand strap |
Optional |
| Mounted bracket |
Optional |
| Standby Battery |
Optional |
| Docking |
Optional |
| Type-C Cable |
Optional |
| OTG Cable |
Optional |
