| BASIC INFO |
| Model No. |

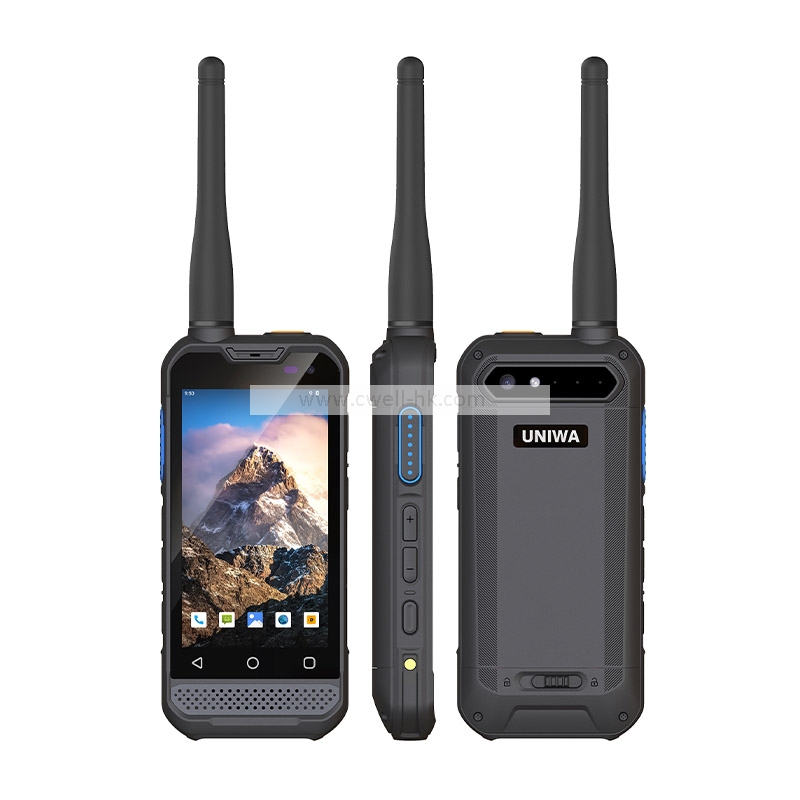

UNIWA
PL550 |
| Product Name |
IP68
Rugged Smartphone with B72 |
| Operating system |
Android
14 |
| Dimension |
135*65*20mm |
| Weight |
265g
(including battery) |
| Material |
Plastic |
| Color |
Black |
| Languages |
Multi-language |
| HARDWARE |
| Display |
4.02
inch Panda Glass IPS capacitive touch screen, 1136*640px, 240dpi |
| Processor |
Mediatek
MT6765 octa core, up to 2.0GHz; GPU:
IMG GE8320, 650MHz |
| RAM |
4GB
RAM |
| ROM |
64GB
ROM, support TF card up to 128GB maximally |
| Camera |
Double
cameras: 8MP FF front camera, 16MP AF rear camera with flashlight |
| Battery |
Removable
4.35V/3900mAh Li-ion battery |
| Sensor |
Gravity
sensor, light, proximity, acceleration sensor, gyro sensor, barometer,
magnetic field sensor |
| Antenna |
External
rod antenna |
| Speaker |
2030
box speaker/2W |
| Buttons |
Power
button, volume +/- button, custom button*2 |
| LED Indicator |
RGB |
| NETWORK
& CONNECTIVITY |
| Network Bands |
2G:
GSM 850/900/1800/1900MHz |
| 3G: WCDMA B1/B4/B5/B8、BC0 |
| 4G: FDD-LTE
B1/2/3/4/5/7/8/12/13/17/20/26/28AB/31/72 ; TDD-LTE: B34/B38/39/40/41 |
| WiFi |
IEEE
802.11a/b/g/n/ac, support 2.4GHz/5.0GHz dual-band WiFi |
| BT |
V5.1 |
| GNSS |
Support
GPS/Beidou/Glonass/Galileo/QZSS |
| NFC |
Support,
13.56MHz |
| I/O
INTERFACES |
| SIM Slot |
*1 |
| Micro SD Slot |
*1 |
| USB Type-C Port |
*1 |
| OPTIONAL
FUNCTIONS |
| P-SAM*2 |
Optional |
| Barcode Scanning |
Optional:
SE4710/EM3092/EM6603/CM60/E20/E30/5703/SE5500/N6601 |
| RELIABILITY |
| Waterproof |
IP68 |
| Drop-proof |
1.5
meters drop |
| Temperature Range |
Operating: -10℃～+50℃ Storage: -40℃～+70℃ |
| Humidity |
5%
to 95% (non-condensing) |
| STANDARD
ACCESSORIES |
| Adaptor (5V/2A) |
*1 |
| USB Cable |
*1 |
| User Manual |
*1 |
| Charging Dock |
Optional |
